Description
Features
• Automatic multiple safety locks.
• Automatic safety lock release.
• Portable unit is easy to move with the power unit stand.
• Multi-point mechanical locks with gravity lock release mechanism.
• Standard rubber pads included.
• Standard ETL certificated power unit;
• AMGO global 5-3-2 warranty policy:
• Five-year Warranty on Steel Components,
• Three-year Warranty on Hydraulic Parts,
• Two years on Electrical Components.
Specifications

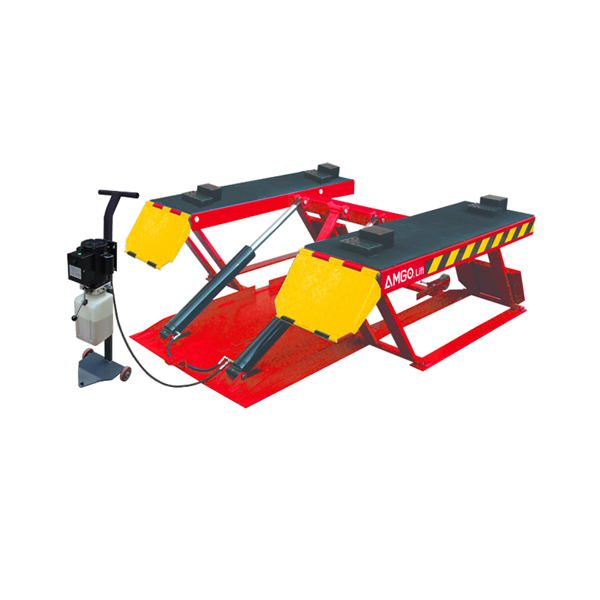

| Model | LR10 |
| Lifting Capacity | 10,000lbs |
| Lifting Time | 90s |
| A1: Max. Lifting Height | 23 5/8″ (600mm) |
| A2: Minimum Height | 4 1/8″ (105mm) |
| B: Runway Length | 53 1/4″ (1352mm) |
| C: Overall Width | 70″ (1780mm) |
| D: Width Between Runways | 34 1/8″ (868mm) |
| E: Overall Length | 76 1/4″ (1938mm) |
| F: Overall Runway Length(Inc.Ramp) | 66″ (1676mm) |
| Gross Weight | 1,025lbs (465kg) |
| Motor | 1.0HP 110V/60Hz, single phase |
